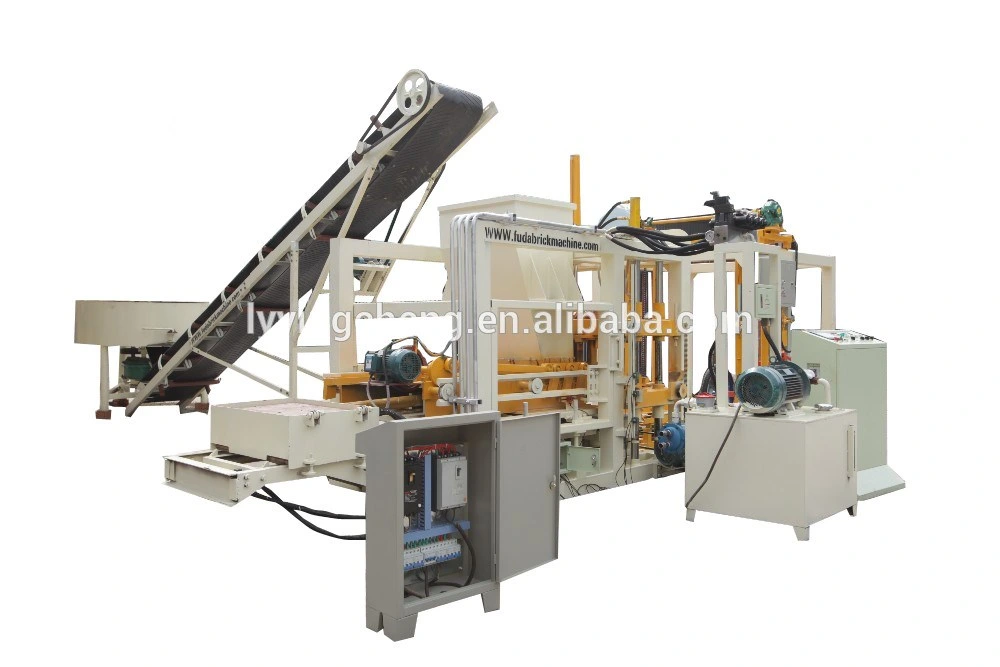

QT4-18 Hydraulic Automatic Cement Block Making Machine
Company introduction
Linyi Fuda Machinery Manufacturing Co.,Ltd. is a professional brick machine manufacturer with more than 23 years history. Linyi Yingcheng International Trade Co.,Ltd. is a sub-company established by Fuda Machinery, Linyi Yingcheng International Trade Co.,Ltd. responsible for export and overseas brick machine service.
Reasons to Choose QT4-18 hydraulic press system automatic concrete block manufacturing plant
1) QT4-18 is full automatic hydraulic brick machine with medium size
2) Low investment high profit
3) Wide production range: concrete hollow block, cement solid block, wall block,
houdis, cabro, interlocking block, paving brick, color street brick, curbstone....
5) Easy to operation
6) Produce stronger and quality bricks
7) Reasonable price
Production line:
Technical information:
Production Capacity:
Produce different size and shape brick by changing molds.
Raw material proportion:
If you want to know many QT4-18 block machine information and quotation, you can contact me.
Caroline Zhao
(Mobile) +86 18669527997
Website: http://fudabrickmachine.en.made-in-china.com
High Production Capacity Automatic Hydraulic Concrete Block Making Machine
Company introduction
Linyi Fuda Machinery Manufacturing Co.,Ltd. is a professional brick machine manufacturer with more than 23 years history. Linyi Yingcheng International Trade Co.,Ltd. is a sub-company established by Fuda Machinery, Linyi Yingcheng International Trade Co.,Ltd. responsible for export and overseas brick machine service.
Reasons to Choose QT4-18 hydraulic press system automatic concrete block manufacturing plant
1) QT4-18 is full automatic hydraulic brick machine with medium size
2) Low investment high profit
3) Wide production range: concrete hollow block, cement solid block, wall block,
houdis, cabro, interlocking block, paving brick, color street brick, curbstone....
5) Easy to operation
6) Produce stronger and quality bricks
7) Reasonable price
Production line:
| Host Block Making Machine | produce brick |
| Mixer | diameter: 1.5m; power:11kw |

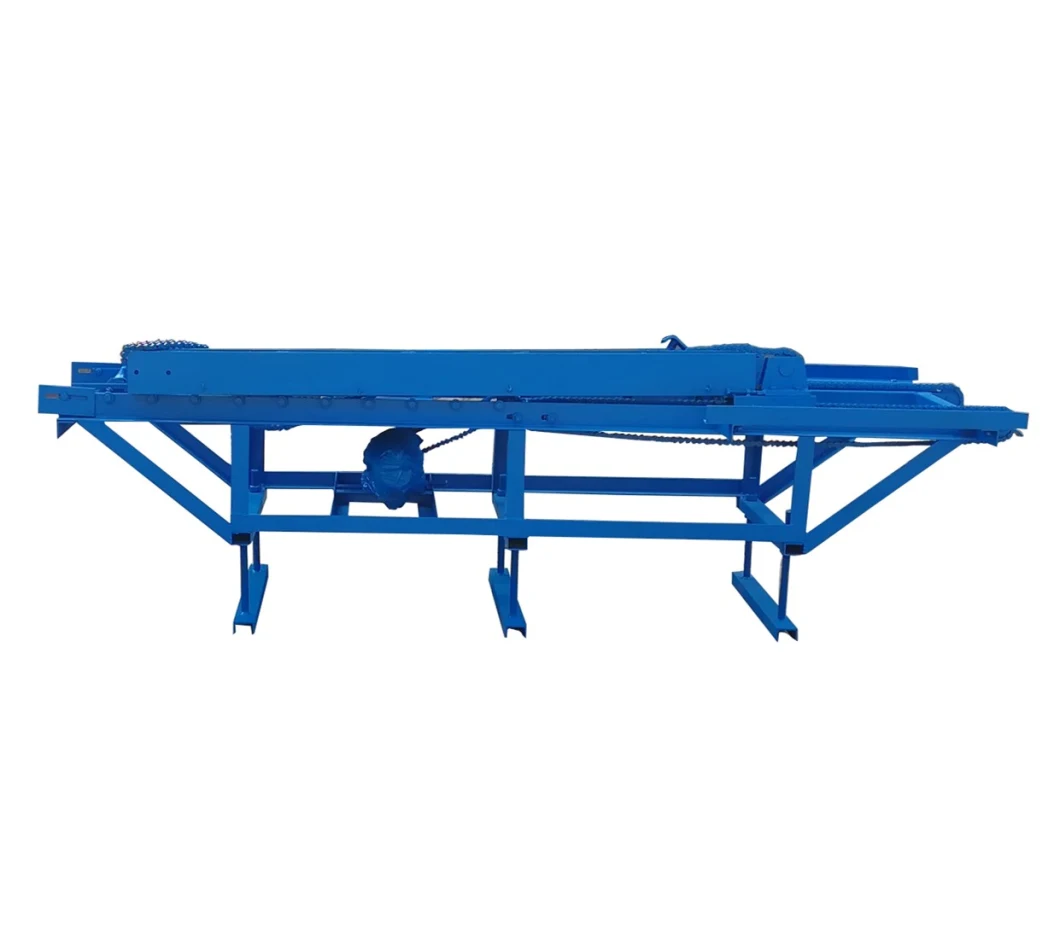

| Conveyor | L=6m |
| Stacker machine | one pallet a time stacker |
Technical information:
| Host machine power | 19.2kw |
| Forming cycle | 18s |
| Vibration force | 26KN |
| Vibration frequency | 4000-4800HZ |
| Rated pressure | 21MPA |
| Weight | 3800kg |
| Raw material | Cement, Sand, Small stones, Stone powder; Concrete |
| Product brick | Hollow brick, Solid brick, Interlock brick, Paver brick, Curb stones and so on |
| Pallet size | 850*550mm |
| Host machine size | 3740(L)*2250(W)*2450(H)mm |
| Worker | 4-5 worker |
| Factory size | At least 1000m² |
Production Capacity:
| Brick size(L*W*H)mm | Pcs/Mold | Pcs/8Hours |
| 400*200*200mm (Hollow brick) | 4 Pcs/Mold | 5760 Pcs/8Hours |
| 400*150*200mm (Hollow brick) | 6 Pcs/Mold | 8640 Pcs/8Hours |
| 400*100*200mm (Hollow brick) | 10 Pcs/Mold | 14400 Pcs/8Hours |
| 240*115*53mm (Strandard brick) | 26 Pcs/Mold | 37440 Pcs/8Hours |
| 200*100*60mm (Holland brick) | 20 Pcs/Mold | 28800 Pcs/8Hours |
| 200*163*60mm ("I" shape) | 12 Pcs/Mold | 17280 Pcs/8Hours |
Raw material proportion:
| 1 | concrete: 10% cement, 30% sand, 60% small stones |
| 2 | 10% cement, 90% stone powder |
| 3 | 10% cement, 30% fly ash, 60%stone powder |
If you want to know many QT4-18 block machine information and quotation, you can contact me.
Caroline Zhao
(Mobile) +86 18669527997
Website: http://fudabrickmachine.en.made-in-china.com
