superior mixing quality, low investment and spontaneous returns concrete mixer with pump on sale Saintyol DAWIN Machinery Electric and Diesel Power Mixing Pump Pleased the End Users in Philippines, France and Nigeria etc..
Concrete Mixing Pump DJBT40-11-56 LOVOL diesel power engine and the JBT40-11-45 electric power has been shipped to France and Nigeria from China and got nice positive feedback.

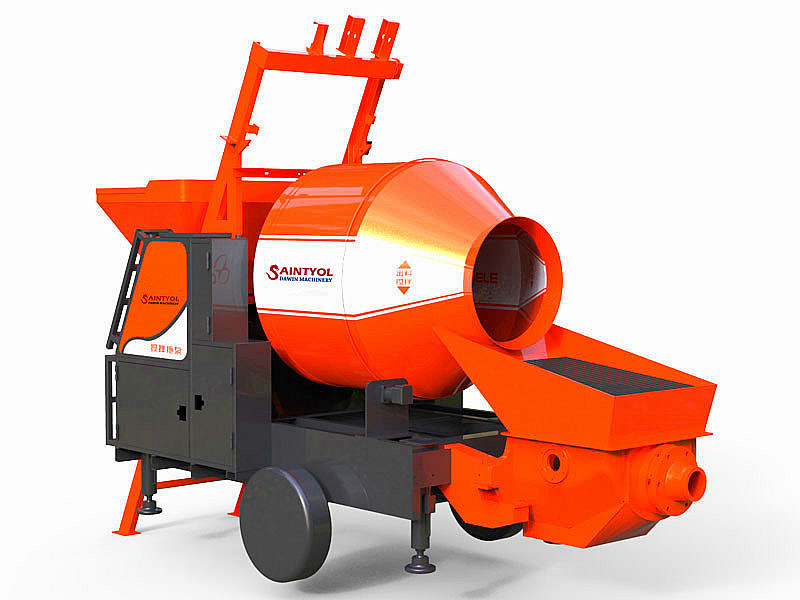

Saintyol DAWIN Machinery concrete mixing pump or say concrete mixer with pump, concrete pump with mixer are made from high grade iron with perfect welding and assembling process in pumping and mixing multi-application capability for different construction jobs.
The advantages of the concrete mixing pump are as below:
A. Theoretical mixing capability in 15-20m3/hr.
B. Pumping capability in 30m3/hr or 40m3/hr/
C. Pumping system could be used separately for jobs.
D. 4 hydraulic control supporting legs, no need the crane to help the standing and moving on job sites, money and labors savable.
E.2 man control the whole machine, costs and labors saving.
F.Nice pumping performance, vertical pumping would be upto 160m and horizontal pumping would be upto 560m in theoretical.
G.Bigger aggregates allowed, the DJBT40 concrete mixing pump mixer and pumping system allowed the max 40mm-50mm aggregates rubble and pebble stones for concrete mixing.
H.The new design concrete mixing pump from Saintyol DAWIN Macinery is the right design which could be right fitted into the containers, easier in shipping by sea.
I.This kind of concrete mixing pump is an very easier maintenance concrete equipment, English manual for daily maintenance guidance available with shipping or by emails.
Saintyol DAWIN Concrete Machinery---- CONSTRUCTION FOR PROSPERITY!
According to the actual requirements of most of the domestic rural areas, rural-urban junction and medium and small cities and towns, our company specially studied and developed a new type of equipment-concrete mixing and transporting pump. The concrete mixing and transporting pump is a kind of new type construction equipment which combines the concrete mixing machine and concrete transporting machine.
The mixing machine adopts double engine mixing. It can mix quickly and uniformly. It adopts grinding wheel rotation to make overall stability and equipped with rapping device to make complete blanking.
The transporting pump adopts double-cylinder full hydraulic pumping system with stable system and reliable performance. All the hydraulic fittings adopt domestic and overseas famous brand to get reliable quality.
Power system: adopts the electrical machine with domestic famous brand.
Main oil pump: adopts domestic famous brand.
Lubrication system: adopts five-point separate lubrication to prevent key components from wear.
Six features of JBT30-C concrete mixer pump:
1. Its cleverly designed body can be operated easily and removed conveniently and flexibly. And it has stable performance;
2. It can mix by its own agitator. In harsh conditions, it has short auxiliary time to guarantee the mixing drag pump can operate perfectly.
3. The mixing pump adopts double-cylinder full hydraulic pumping system with convenient and efficient operation, quick pumping speed and high efficiency work;
4. It can be operated by one operator, because the automation degree is high. Equipped with remote control, it can be operated easily;
5. The hydraulic system greatly improves the overall reliability of mixing drag pump;
6. The whole machine was designed with economy, reliability, safety and durability to achieve fine motor performance and high equipment utilization rate.
The mixing agitator equipped on the mixing devices drives by the ruler circle. The hopper drives feeding by the taper motor. All the hopper and positive and negative going motion is controlled by the electricity. It has the advantages of less energy consumption, compact structure, smooth movement, reliable driving, easy operation, fine mixing quality, high production efficiency and high automation degree.
The application scope of the concrete mixer pump: the mixing trailer pump adopts all kinds of dine aggregate concrete in construction and the mixing and delivery of large aggregate concrete, such as new rural construction, irrigation and water conservancy infrastructure construction, construction of small high-rise buildings and wharf construction etc.
Economic benefit of concrete mixer pump
1. One product has two functions: combine the concrete mixing and pumping to reduce the purchasing cost.
2. Mix at the site and pump continuously, so that the service efficiency can achieve 4-6 times pumping of traditional fixed mixing machine and concrete transporting pump, so that the construction efficiency is greatly improved and the construction progress is greatly speeded up.
3. In the progress of mixing and pumping, the two progresses can be accomplished by just one operator. Its simple operation and high degree of mechanization can greatly save the manual work.
4. The total power of trailer concrete mixer pump is much lower than the total power of the traditional agitator + concrete pump and can be very suitable for rural construction.
5. The trailer concrete mixer pump can be removed conveniently and flexibly. With the powerful maneuvering characters, it can be very suitable for the alternating operation in many construction sites.
6. The concrete mixer pump can be suitable for tenancy and investment as well. It has lower investment cost, more popularity and shorter period of cost recovery. There are users of mixing drag pump produced by DAWIN Machinery in most of the domestic cities. The products are well received and trustworthy.
Features of concrete mixer pump: it adopts advanced S reversing valve for concrete transporting; its glasses plate and cutting loop adopt high stereoplasm alloy materials for longer service life; its exit pressure is high, so that it can realize the transporting of high-rise buildings and long distance; its hydraulic cooling adopts effective water cooling for convenience of use; it has the function of reversing pumping and can highly reduce the pipe plugging; it is equipped with automatic centralization lubrication system to guarantee the service life of rotation; its electric control cabinet is equipped with cable remote control handle for ease of operation.
Max. theoretic concrete mix volume
Max. theoretic concrete delivery volume
Concrete delivery pressure
Diameter of delivery cylinder
Output opening diameter
Hydraulic oil tank volume
|Allowed pumping maximum aggregate size|
Type of Hydraulic oil circuit
|Type of distribution valve||S|
S tube valve
|Dimensions (L × W × H)||mm||4900*2091*2800|
Theoretic outlet pressure
Theoretic delivery height
Theoretic delivery distance
S pipe valve
Concrete cylinder spec.
(inner dia. x stroke)
Oil cylinder spec.
(outer dia. x inner dia. x stroke)
Delivery pipe inner diameter
Main motor power
Hydraulic circuit type
Main system max. oil pressure
Distributing system pressure
Mixing system oil pressure
Max. Mixing speed
Oil tank volume
Max. aggregate diameter
Concrete slump scope
Mixing volume per time
Mixing volume per hour
Mixing motor power
Lifting motor power
Water pump power
Vibrating motor power
Diesel model in options :
|Max. theoretic concrete delivery volume||m³/h||30|
|Max. theoretic delivery pressure||MPa||10|
|Max. delivery frequency||times/min||26|
|Type of distribution valve||S tube valve|
|Main oil cylinder specification: cylinder dia./role dia.× stroke||Mm||90/65×830|
|Diameter of delivery cylinder||Mm||200×830|
|Output opening diameter||Mm||150|
|Pipeline inside diameter||Mm||125|
|The mixer type||Tipping bucket|
|Power system||Rated power of pumping diesel engine||KW||56 (LOVOL 1004-4)|
|Rated power of mixing diesel engine||KW||13.2|
|Hydralic system||Type of Hydraulic oil circuit||Open circuit|
|Maximum oil pressure of main system||MPa||28|
|Max. mixing speed||r/min||42|
|Hydraulic oil tank volume||L||420|
|Other parameters||High and low pressure switch||Equipped|
|Procedure-control electric lubricating system||Equipped|
|Concrete slump range||mm||80~200|
|Allowed pumping maximum aggregate size|
|Pebble 40mm |
|Dimensions (L × W × H)||mm||5500×2190×3930mm|
|Max. delivery distance|
As a kind of often-used mixing machine, mini concrete pump with mixer enjoys a good reputation by its convenient transition, superior mixing quality, low investment and spontaneous returns. Concrete mixer and pump manufactured by our company adopts original Germany Rexroth pump, which ensures the stable performance and provides sufficient power for horizontal transport of concrete over 200m. The advanced cylinder of manual concrete pump mixer ensures that the machine has better suction performance, large mixing aggregate size and easy maintenance. It is unquestionably that our concrete mixer pump can make profits and shorten your construction period.
SAINTYOL DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. A factory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
SAINTYOL DAWIN Machinery Answers:
Q: How many kinds of trailer concrete pumps with mixers you have?
A: We have 3 models of concrete pumps with mixer , i.e. JBT30-8-37, JBT30-10-45 and DJBT35 completely diesel power model.
Q: Do you have concrete placing booms that could be working together with concrete mixer pump?
A: Yes, We have below series.
1: 13/15/17m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: What is the configuration?
A: For exporting, most of the components are world famous top brands such as LOVOL, DEUTZ, Siemens, Rexroth, Kawasaki, Schneider, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client's requirements.
Q: Is engineer available for training and after sales service?
A: Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
1. May enjoy the life-long service after you buy our products.
2. Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting
Equipment, auxiliary staff is ready. Engineers are available if you need.
4. Certain quantity stochastic tool will be provided while delivering goods.
5. Within 48 hours service will be available according to different regions after received
6. For exported products, Our company sends the constructor to help to operate and
Management equipment, time according to your needs. The related fee will be undertaken
7. Promptly provides the fittings according to users' demands, handles for the user consigns
8. All products (easy worn parts not included) loss caused by non-human factors will be
Free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone when you have any problems with the plant.
Welcome to our website and hope our trailer concrete mixer with pump will make you satisfied. We think creatively, design bravely, manufacture precisely and loyalty to our customers. And we have our own factory. So We can produce the products, according to customer requirements.
