Brief introduciton of grain rotary dryer
Rotary drum dryer can dry many different raw materials contain moisture, such as sawdust, coal, coal slurry, slag, fertilizer, sand, chicken manure, cassawa and sugar bagasse, etc. They are widely used in building materials, metallurgy, and chemical industry.
Rotary dryer structure
Rotary drum dryer cosists of rotary body, lifting blade, driving device, supporting device, sealing ring.
Heating source can be coal, charcoal, wood, gas, electricity, oil, wind power, etc.
Working principle: Wet materials are sent to dryer by conveyor belt or elevator, or in order to feed materials continuously and smoothly, you can add a feeder. When installation, the drum need have a 3-5º inclination, to ensure the materials move from the upper part to lower part smoothly. In upper part, we can build up a brick heating stove or coal-gas producer, make the hot air enter into dryer, and materials and hot airs are contacted completely, due to constantly raised and shed materials, then wet materials are dried.
Main technical parameter
|Productive capacity(t/h)||Revolution(r/min)||Motor power(Kw)||Install angle(°)||Finished moisture|
|ø1.0x5.0||0.5-1.2||0.6-6||4||3 ~ 5||≤ 1.5%|
|ø1.2x6-10||1.5-3||0.6-6||5.5||3 ~ 5||≤ 1.5%|
|ø1.5x12-18||3-5.5||0.6-6||15||3 ~ 5||≤ 1.5%|
|ø1.8x12-18||5-6.5||0.6-6||18.5||3 ~ 5||≤ 1.5%|
|ø2.2x12-22||7-12||0.6-6||22||3 ~ 5||≤ 1.5%|
|ø2.4x15-20||9-15||0.6-6||30||3 ~ 5||≤ 1.5%|

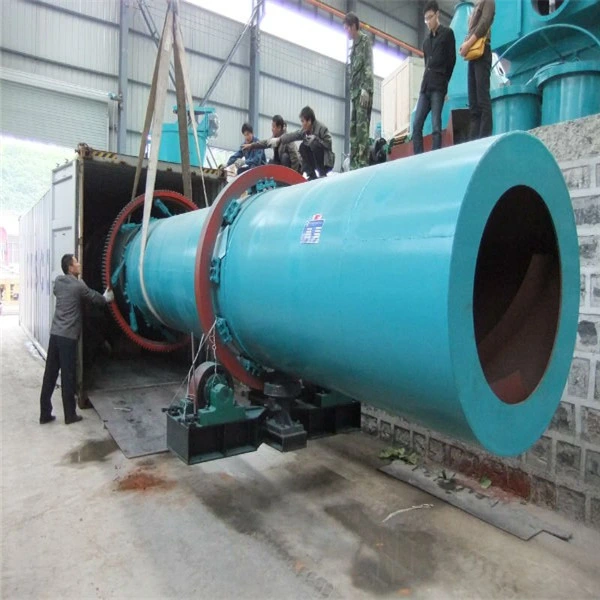

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 5591908 Phone :008613691410364
